Wet Pan Mill

Wet Pan Mill

JXSC produces effective wet pan mills for various minerals processing plants. Wet pan mill is a kind of wet type grinding mill machine which widely applied in the grinding and selection circuit for ferrous metals, non-ferrous metals,  refractory and precious metals like gold and silver.

【Working principle of ball mill】
Main parts: motor drive, central shaft, grinding base, roller, belt, etc. Pan grinder machine can solve the problem of uneven stirring and difficult discharge of air. continuous stirring and grinding can realize the balance of water and air. 【Application】
Wet pan mill is a good best replacement for the ball mill, it is very popular adopted in the grinding circuit of the middle, fine particle processing plant. Statistically, over 80% of gold mines are placing pan mill s in an important position.
Materials: silver, gold, iron, zinc, lead, antimony, tungsten, etc.
Types of pan mill
According to the structure, the pan mills divide into single roller mill, double roller mill, and three roller mill. according to the application, it also can be divided into the gold mill, mercury mixing mill, iron mill, and electric mill.
【Features】
Wet pan mill is a popular ore grinding mill machine especially in Africa and South America countries due to its economic investment, ease of operation and maintenance.

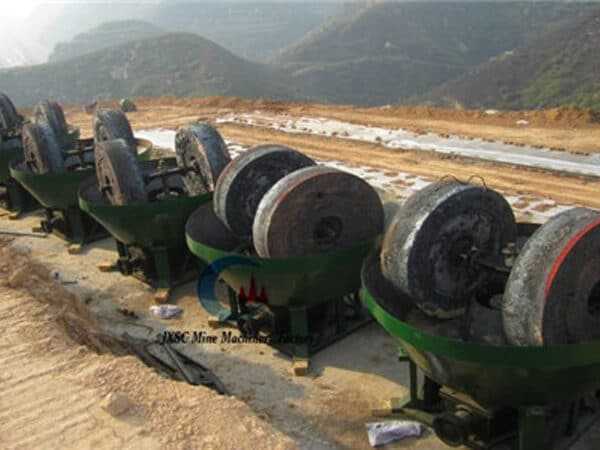

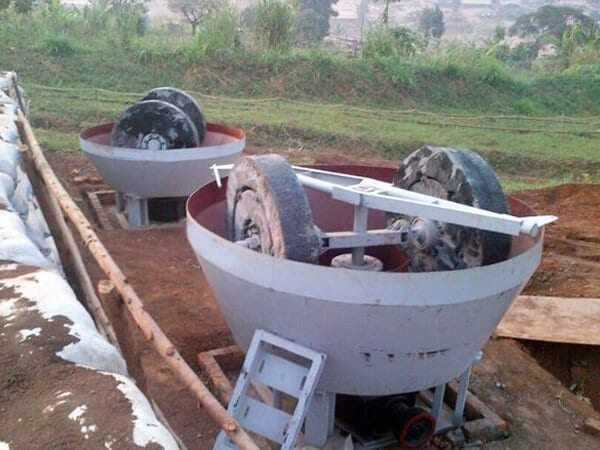

wet pan mill for sale wet pan mill machine pan grinding mills

Tech Specification

ModelFeeding size(mm)Output sizeCapacityRPMPowerWeightOverall dimension
(mm)(t/h) (Kw)(kg)(mm)
900< 180.6-0.070.1-0.413-2033.22300*300*1500
1000<200.6-0.070.5-0.813-205.54.82400*2400*1600
1200<200.6-0.070.8-1.213-207.56.22400*2400*1600
1400<200.6-0.071-313-2018.59.52700*2700*2100
1500<300.6-0.072.513-202212.52800*2800*2100
1600<300.6-0.074-613-2030/3716.22850*2850*2200
