Sand Washing Machine

JXSC supply reliable effective sand washing machines for long service life and low cost of maintenance, the ever-changing innovative spirit which enables us being a knowledge and expertise company in the mineral processing industry.

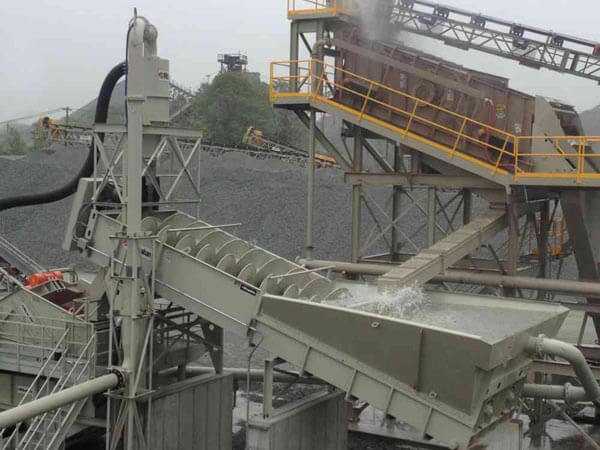

The sand washing machine is cleaning equipment for artificial sand and natural sand, which capable of selection, classification, dust-removal, washing, and widely used in the sand quarrying, mining, construction materials, water conservancy, hydropower, concrete and so on applications. There are two types of sand washing machines: wheel type and spiral type. 【Spiral Sand Washing Machine】

Main parts: water tank, spiral shaft, adjustable plate and transmission device.
By rotating the spiral shaft to mix the sand/ rock and water evenly, the sand-water mixture through the setting tank, the coarse particle with heavier weight settle down the tank bottom, at meanwhile, the lighter weight material will flow out. In addition, the spiral log washer can classify the sand by size.
Spiral washing machine suited for abrasive, refractory material, cement, quartz, steel sand, slag powder, copper ore, iron, gold, gravel, frac sand, concrete aggregate, asphalt aggregate and other fine and medium-sized material. it has great features of energy-saving, durable, ease of maintain.
Types of spiral washer
JXSC offers a single log and double log screw wash plant to process material within 30mm.

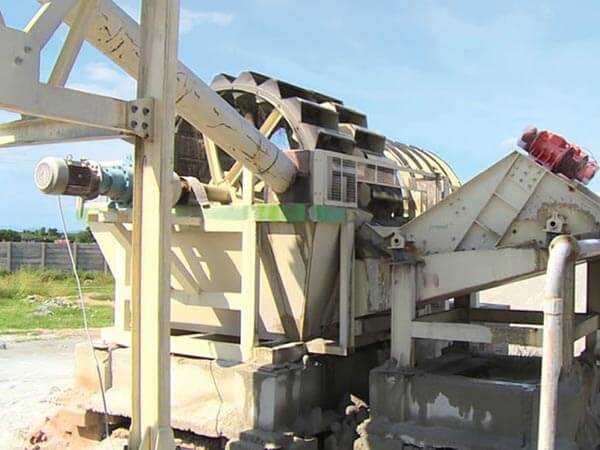

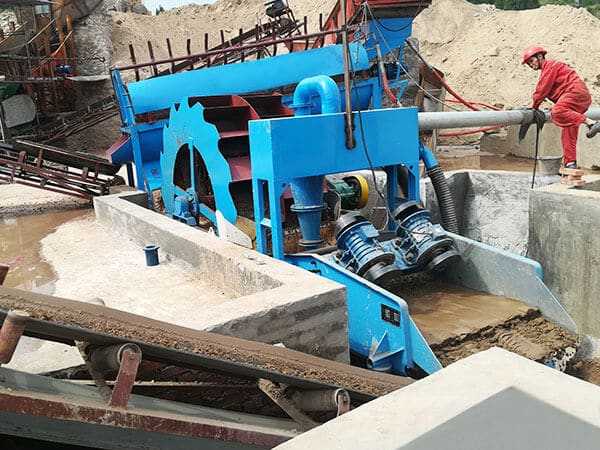

【Wheel Sand Washing Machine】
Main parts: triangle belt, reducer, gear, impeller, motor drive, tank.
The motor drives the impeller to rotate and stir the mixture of water and sand material, the dust cover of sand can be removed to some extent. the lighter weight sand and impurity substance flow out along the water flow, cleaned sand settle down at the tank bottom that then discharged gradually.

【Sand plant】
Sand washing machines always combine with stone crusher, sand making machine, sand cleaning machine, vibrating screen, vibrating feeder, convey belt and so on equipment to generate construction grade sand, gravel, aggregate materials.
JXSC, always keep innovating and improving to incorporate with many qualities, known name famous with responsibility and integrity. spiral-type-sand-washing-equipment wheel type Sand-Washing-Machine spiral-sand-washer

Mechanical simplicity and ease of operation

Large and continuous grinding capacity

Simplified installation, adjustment and maintenance

Efficient and energy saving

More detailed models - PDF file

ModelDiameter(mm)Speed Of RotationFeeding sizeCapacityMotor power(kw)Weight
(r/min)(mm)(t/h)(kw)(mm)(kg)
XS221022002.5≦1015~3043180*1955* 23502260
XS261026002.5≦1020~505.53515*2070* 26722500
XS281028001.2≦1050~80113964*3014* 28953200
XS281528001.17≦1060~100 113964*2137* 28953580
XS301630001.2≦1070~110114169*3456* 30553850
XS321032001≦1080~120154340*2760* 33493950
XS321532001.17≦1095~130154346*2198* 33454185
XS361036001≦10110~200154580*3218* 36004600
