Jaw Crusher
Application Field
Jaw Crusher is widely used to crush materials into medium size in the first crushing process of ore rocks, so your rocks would get be ready for the secondary crushing. it had a wide range of suitable materials, such as granite, marble, basalt, limestone, quartz, pebble, iron ore, copper ore and so on. the jaw crusher is applicated in mining, metallurgy, building, highway, railway, water conservancy, chemical industry and etc.
【Single toggle jaw crusher】
Single toggle jaw crusher is very suited for the portable crushing platform, have obvious advantages of mechanical simplicity, ease of maintenance and adjustment, besides, high processing capability and high reduction ratio also can account for its popularity. but its wear consumption is higher than double toggle jaw crusher machines of same capability and reduction ratio. 【Double toggle jaw crusher】
The first Blake jaw crusher invented as a double toggle jaw crusher, a small movement act on the receiving end of the chamber can produce a powerful crushing force to large rock stones. The upgraded modern ear eccentric jaw crusher has shown that using a swinging jaw which is suspended on the eccentric shaft with heavy duty double roll spherical roller bearings on a curved jaw plate can do help of crusher non-choked. this curvity may reduce the effective input opening rate but does avert ore tramp blocking and thus increase capacity.
【Jaw crusher for sale】

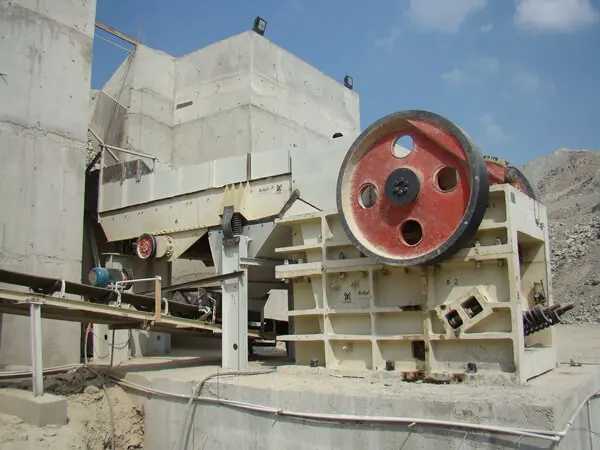

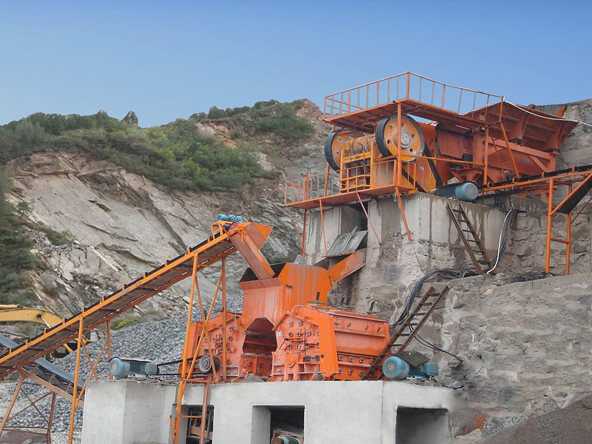

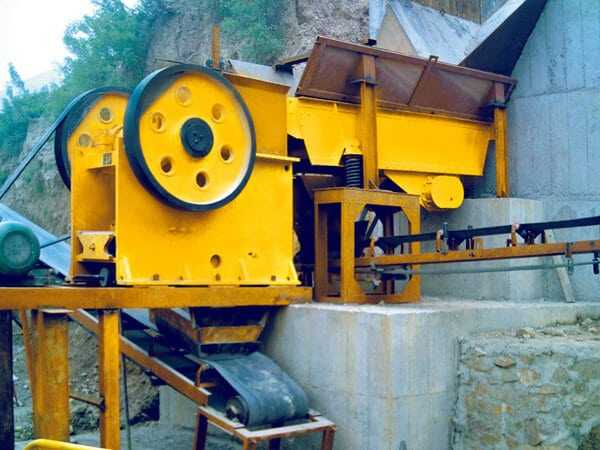

Jaw crusher machine crushes rocks to smaller pieces for the secondary and tertiary crushing stages. As a well-liked crusher that it could be a good alternative choice to gyratory crushers. In addition, the jaw crusher has a small volume and lightweight thereby ideal for small crushing plant and restricted space like portable crushing rigs.
JXSC, 35 years of jaw crusher manufacturer, always keep innovating and improving to incorporate with many qualities, known name famous with responsibility and integrity.
Why Choose Our Jaw Crushers?
- Simple structure, convenient to use and easy to maintenance. Stable performance, low operation cost, high crushing ratio.
- Crushing cavity depth and no blind spot, increasing the feeding ability and capcity.
- High crushing ratio, uniform product size.
- Lubrication system is safe and reliable, it's easy to replacement.
- Energy-saving: the stand-alone crusher saving about 15%-30% of energy, and the whole system can save even more.
- Environment-friendly: Low noise, little dust.
Find more jaw crusher models - PDF file
Model | Feeding size | Discharging size | Capacity | Motor power | Weight | Overall dimension |
(mm) | (mm) | (t/h) | (kw) | (kw) | (LxWxH)(mm) | |
PE-150*250 | 150*250 | 10-60 | 3-15 | 5.5 | 2.2 | 1000x1450x900 |
PE-250*400 | 250*400 | 20-80 | 5-20 | 15 | 2.8 | 1450x1315x1296 |
PE-400*600 | 400*600 | 40-100 | 16-60 | 30 | 6.65 | 1565x1732x1586 |
PE-400*600 | 400*600 | 40-100 | 16-60 | 30 | 6.65 | 1565x1732x1586 |
PE-750*1060 | 750*1060 | 80-180 | 110-320 | 90-110 | 28 | 2450x2472x2840 |
PE-900*1200 | 900*1200 | 95-225 | 220-450 | 110-132 | 49 | 3335x3182x3025 |
PE-1500*1800 | 1500*1800 | 210-360 | 525-1120 | 280-335 | 132 | 5100x4700x4300 |
