Impact Crusher

Impact Crusher

JXSC offers a wide selection of impact crushers which with innovative design can bring significant improvements for your productivity, safety and uptime, generally corporate with jaw crusher and sand making machines. The international famous brands have Nordberg, Sandvik.

【Working principle of impact crusher】
By creating a strong impact force, the impact crushers cause the rock material to break down along the weakest cracks, thus large lump split into smaller pieces. The capability of controlling the vary of flow of materials through impact crushers distinguishes JXSC from other stone crusher manufacturers. In essence, the parameters like material feed angle, rotor speed, crushing force are adjustable, rock materials enter the crushing cavity along the feeding angle, then the powerful spinning rotor strikes the stone to fragment with an adequate pre-setted force. The motion arc of split material is calculated to move in the rotor motion circle area, where the materials are impacted by the hammer rotors sequentially. by adjusting the gap between frame and rotors can optimize the size particle and shape of output material, till the materials of required discharges the crusher through the base frame. 【Application】
Capable of producing construction-grade aggregate, artificial sand and stone materials, run of mine material, especially for the secondary and tertiary crushing stages.
Apply for crushing middle/ fine materials like concrete, granite, limestone whose particle size of less than 120-500mm; compression strength of less than 350 Mpa. Types of impact crusher
Vertical shaft impact (VSI) crusher is commonly applied in the last stage of the crushing circuit before grinding operation, there are various models support different conditions, portable, mobile, stationary.
Horizontal shaft impact(HSI) crushing circuit in either primary or secondary crushing phase with safety and great reduction ratio.
Main parts: spring, tension rod, impact rack, main shaft, blow bar, rotor, wedge lock assembly, liner plate, etc.

【Features】
Efficient crushing with energy saving and great capacity; High flexibility in the vary of applications; Easy to operate and maintain.

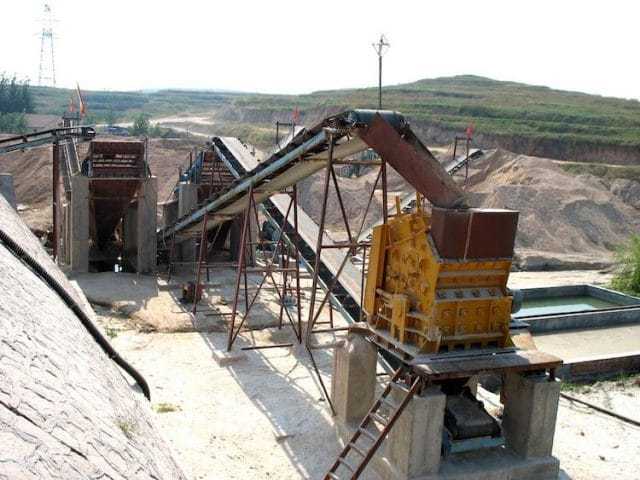

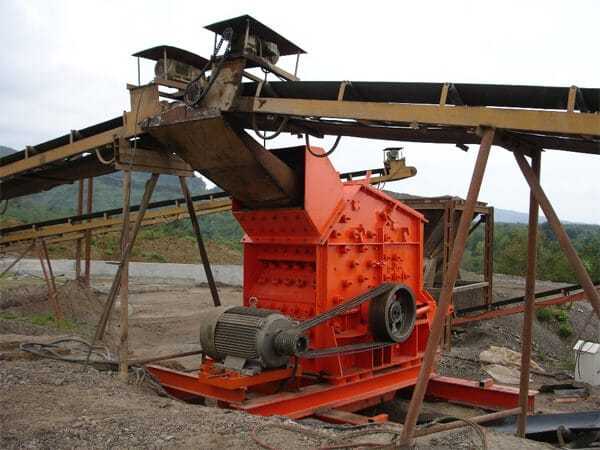

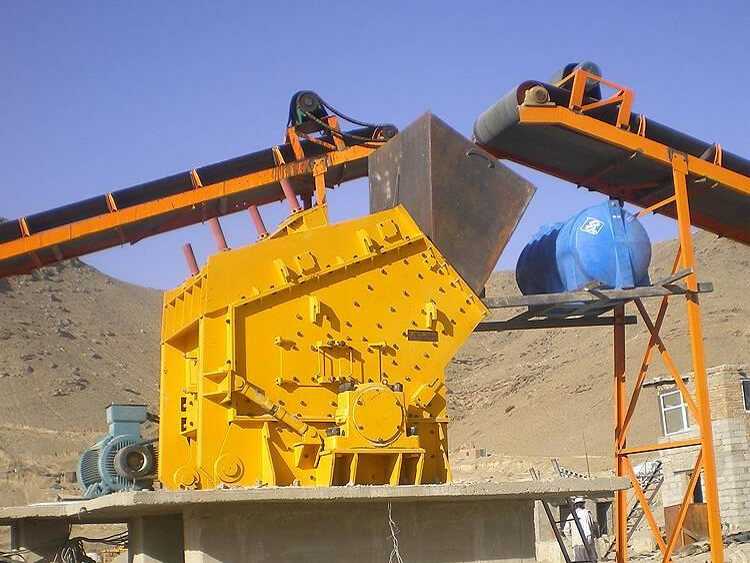

Everything we do is derive deeply from our ever-enhanced industry knowledge and professional experience that drive us to bring a greater difference to every customer. 35 years of close cooperation and updating to the continuously changing demands have shaped us into an innovative and knowledge enterprise. impact crusher operation impact-crusher impact crushers working principle

Tech Specification

ModelRotor Spec (mm)FeedopeningMax FeededgeCapacityMotor PowerWeightOverall Dimension
(mm)(mm)(t/h)(Kw)(t)(L*W*H)mm
PF-10071000*700400*73030030-5037-559.52400×1558×2660
PF-10101000*1050400*108035050-8055-7512.22400×2250×2620
PF-12101250*1050400*108035070-120110-13214.92690×2338×2890
PF-12141250*1400400*1430350110-180132-16018.62690×2688×2890
PF-13151320*1500860*1520500160-250180-26019.33096×3273×2667
PF-13201320*2000860*2030500160-350300-375283096×3560×3185
PF-15201500*20001315*2040700300-500400-45042.83890×3560×3220
