Hydrocyclone

Hydrocyclones first appeared in dutch in the late 1800s, Hidrociclon is an equipment that uses rotary current to classify, separate or sort coarse particles of sewage. It widely used in mine processing such as aggregates, hard rock mining, sand, industrial minerals, coal and more. Because the equipment without moving parts, take up small areas, process high volumes and relatively cheap.

The shortened form(often referred to) of hydrocyclone is a cyclone. There are two types of pressure and gravity. The water depends on pressure or gravity feed into from overflow, Then under the action of centrifugal force, the coarse and heavy granular materials are thrown towards the wall and rotated downward, and discharge together with the formed concentrated liquid. The smaller materials were discharged after rotating again.

Most hydrocycline are made of wearproof cast iron to reduce the rate of wear of the conical body's inner wall. Also, use greenstone and wear-resisting rubber to make hydrocyclone liners

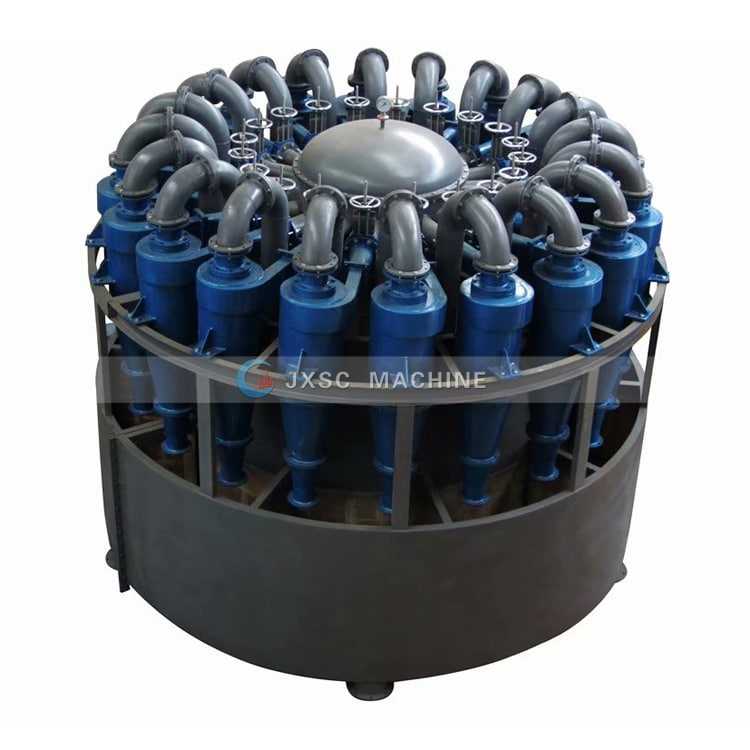

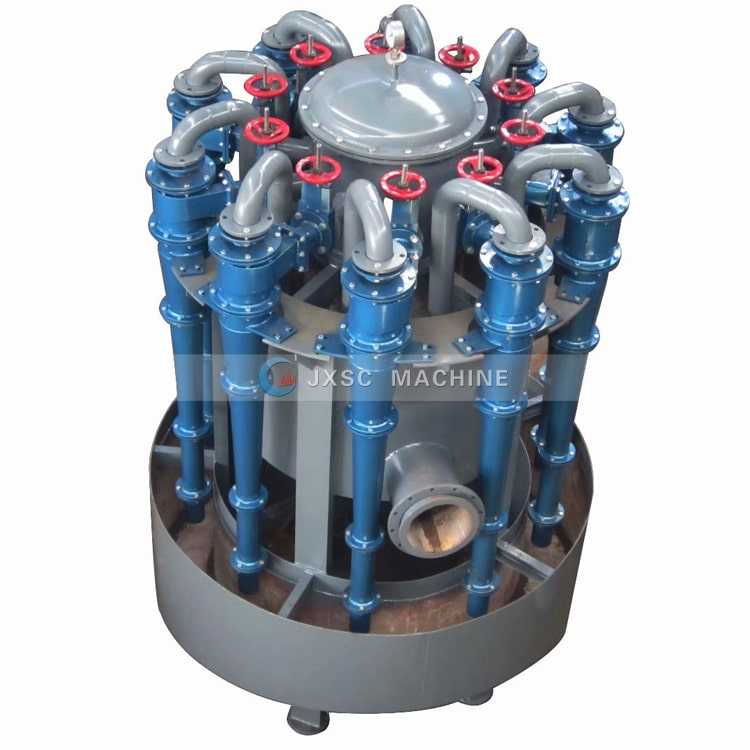

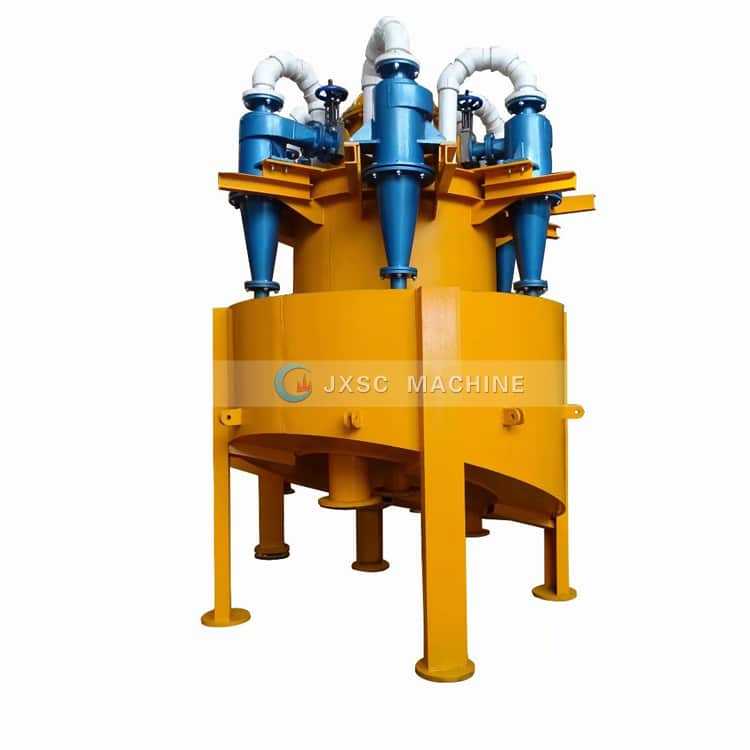

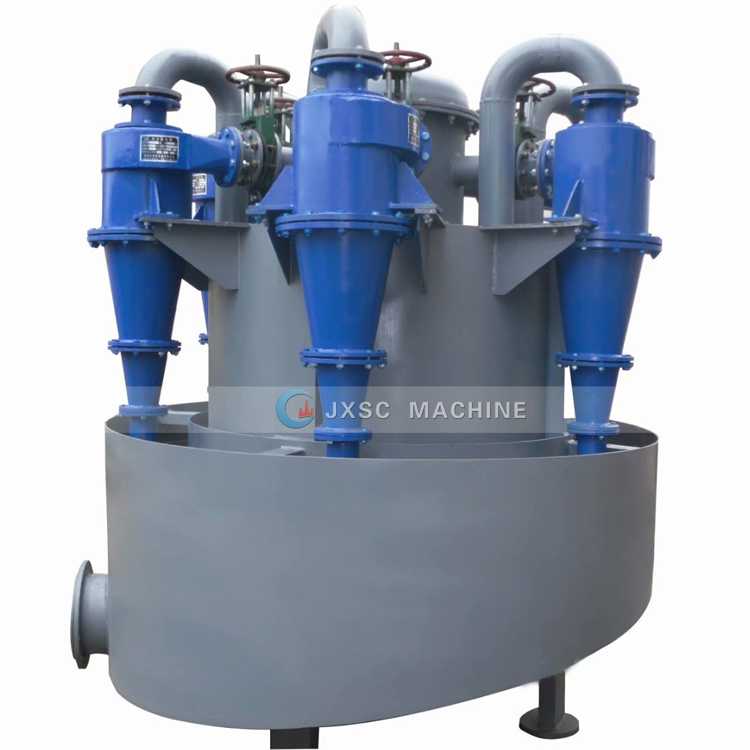

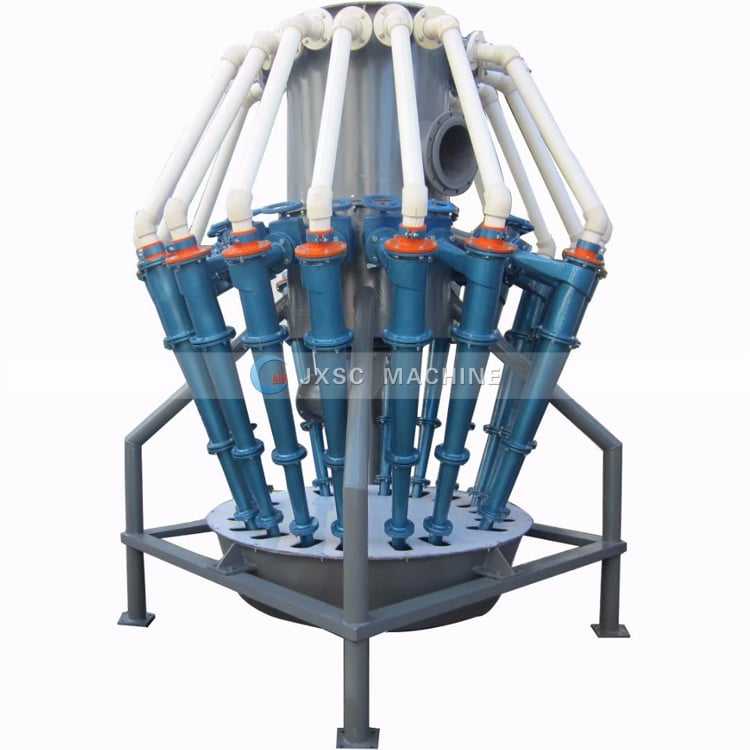

JXSC Hydrocyclones:

Capacity：10-524 m³/h
Advantages:
1. Small footprint
2. Simple to operate
3. Process high volumes
4. No moving parts
5. Can separating fine solids from liquid
Hydrocyclone Parts：
Vortex finder, tangential feed inlet, cylindrical body, primary vortex, secondary vortex, conical body, spigot
Processible Material：
gold,chrome,tin,coltan,diamond ,tantalite ,silica sand

Hydrocyclone Working Principle

Under the action of pressure, the ore slurry enters the shell along the tangent direction of the pillar body. And rotates in the hydrocyclone shell. The coarse particles (or the dense particles) enter the periphery of rotary current due to them get the larger centrifugal force. At the same time, the coarse particles downward flow with ore slurry. Finally, discharged from the bottom sand nozzle into the sand. The fine particles are in the center of the rotary flow because they suffer less centrifugal force. And moving up with the liquid, then the overflow discharge from the downspout.

Tech Specification

Specification	Capacity (m 3 /h)	Separation Particle Size (μm)	Diameter of Overflow Outlet (mm)	Diameter of Spigot (mm)	Inlet Pressure (MPa)
150	10.0-23.0	25-74	30-50	8.0-20.0	0.060-0.15
200	17-38	28-80	40-65	16-32	0.060-0.15
250	24-53	30-82	65-100	16-40	0.060-0.15
300	40-100	36-90	65-120	20-40	0.060-0.15
350	56-118	40-100	80-120	30-70	0.060-0.15
375	74-157	42-105	90-135	30-70	0.060-0.15
450	90-192	44-110	100-150	30-70	0.060-0.15
500	128-300	50-115	130-220	35-100	0.060-0.15
610	200-468	57-125	160-260	65-110	0.060-0.15
660	237-524	60-130	180-280	80-150	0.060-0.15
