Dense Media Separation

In a Dense Media Separation (DMS) plant, powdered ferrosilicon (an alloy of iron and silicone) is suspended in water to form a fluid near the density of diamond (3.52 g/cm3), to which the diamond bearing material is added to begin the separation process of the heavier minerals from the lighter material. Additional separation of the denser material occurs by centrifuge in "cyclones" that swirl the mixture at low and high speeds, forcing the diamonds and other dense minerals to the walls and then out the bottom of the cyclone. Waste water rises at the center of the cyclones and is sucked out and screened to remove waste particles. The DMS process results in a concentrate that generally weighs less than one percent of the original material fed into the plant at the beginning of the process.

Pre-sales service:

We provide you with the prophase plan, process flow design, and manufacturing equipment according to your special demand.

After-sales service:

We will regularly pay a return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

Sales service:

Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.

Lifelong service:

One year warranty to make sure your machine runs constantly. Always offer lifelong service and provide spare parts for a long term.

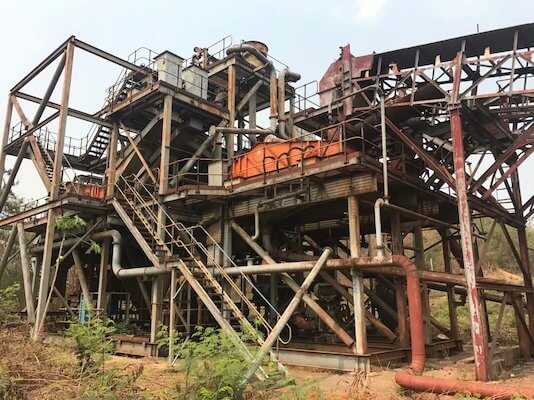

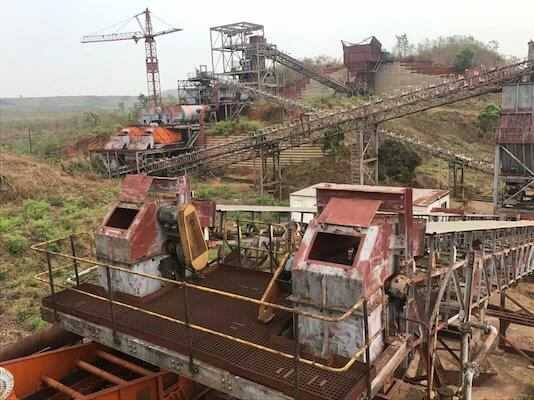

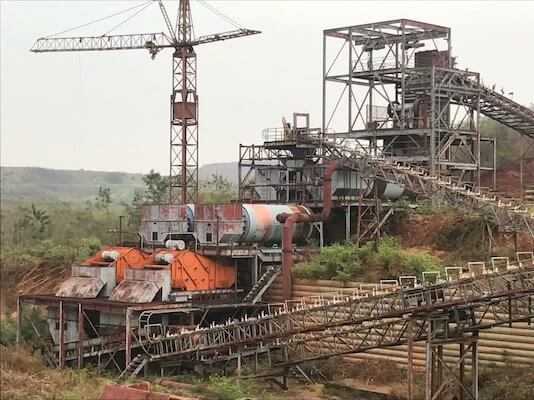

DMS A Congo DMS system DMS B Congo DMS system DMS C DMS E Congo DMS system

Dense media separation Feature

In a Dense Media Separation (DMS) plant, powdered ferrosilicon (an alloy of iron and silicone) is suspended in water to form a fluid near the density of diamond (3.52 g/cm3), to which the diamond bearing material is added to begin the separation process of the heavier minerals from the lighter material. Additional separation of the denser material occurs by centrifuge in "cyclones" that swirl the mixture at low and high speeds, forcing the diamonds and other dense minerals to the walls and then out the bottom of the cyclone. Waste water rises at the center of the cyclones and is sucked out and screened to remove waste particles.  The DMS process results in a concentrate that generally weighs less than one percent of the original material fed into the plant at the beginning of the process.

Dense media separation system equipment list

No.Equipment nameUnitQty
1Jig separatorSET4
2Vibrating feederSET2
3Belt conveyorSET5
4Vibrating screenSET1
5Slurry pumpSET1
6HydrocycloneSET1
7Magnetic separatorSET1
8ConcentratorSET2
