Chrome Mining Process
Process: First use hopper and vibration screen feeding stone chrome to preliminary crusher, then to fine crusher, Then use belt to a hopper, underside the hopper have a feeder, feeder 0-20mm size to ball mill, ball mill working together with spiral classifier, then get 0-1mm size to shaking table, shaking table also have two stage, one for preliminary, one for fine. Then can recovery chrome
Pre-sales service:
We provide you with the prophase plan, process flow design, and manufacturing equipment according to your special demand.
After-sales service:
We will regularly pay a return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Sales service:
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Lifelong service:
One year warranty to make sure your machine runs constantly. Always offer lifelong service and provide spare parts for a long term.

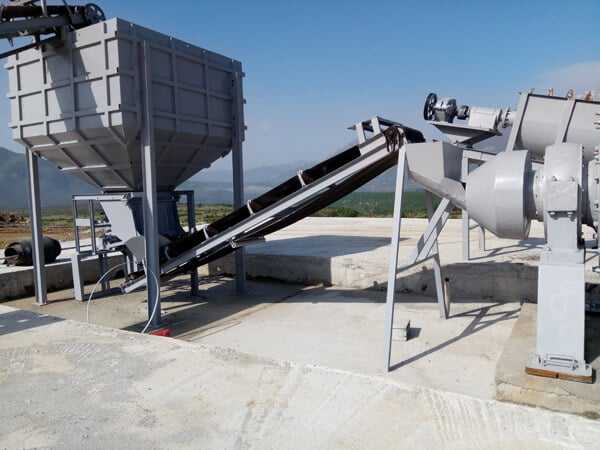

Rock chrome mining equipment Alabania 5TPH Rock Chrome ore Separation Plant
Chrome mining process
Process: First use hopper and vibration screen feeding stone chrome to preliminary crusher, then to fine crusher, Then use belt to a hopper, underside the hopper have a feeder, feeder 0-20mm size to ball mill, ball mill working together with spiral classifier, then get 0-1mm size to shaking table, shaking table also have two stage, one for preliminary, one for fine. Then can recovery chrome

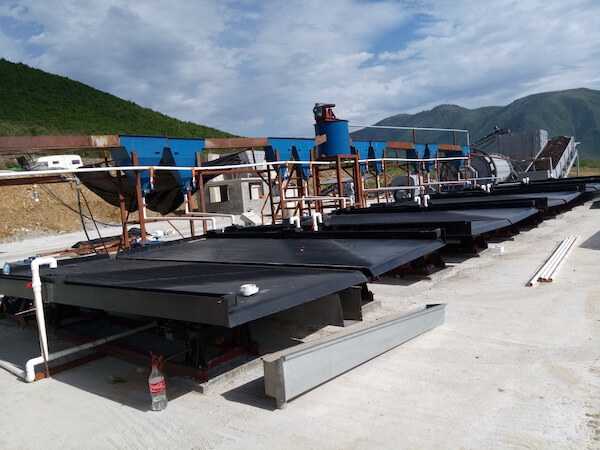

This line is for our Albania customer, The capacity is for 10 tons per hour, Feeding size is for 300mm, the feeding size is big, so need two stage jaw crusher, use two stage jaw crusher can get 0-20mm size. Spiral classifier is for classifier ball mill output material, 0-1mm size to shaking table, and +1mm to ball mill grinding again. Shaking table also have two stage, so this line have add hydraulic box to feeding material to shaking table, hydraulic box also can separator different size, the different size to different shaking table desk, course deck, fine sand deck, slime deck, use different deck to get the highest recovery rate.

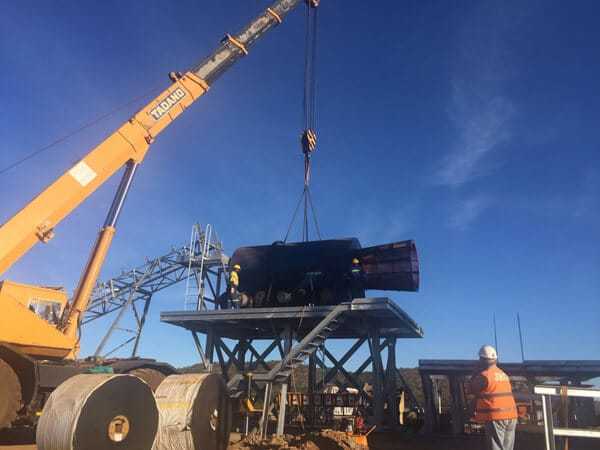

Our engineer have go this customer site for install and debug. It have use one month to finish all of machine install and debug, to confirm all machine can use then leave. Not only install and debug, Our factory also accept sample test, it can send sample to our factory for test, also our engineer can go your mine site to inspect and take sample for test. We can design the flow chat for customer, and draw layout. Supply customer visit factory invitation letter. We will try our best to service customer require.
Chrome mining process equipment list
No. | Equipment name | Unit | Qty | |||||
1 | Vibrating screen | SET | 2 | |||||
2 | Spiral Classifier | SET | 1 | |||||
3 | Spiral separator | SET | 10 | |||||
4 | Strong magnetic separator | SET | 1 | |||||
5 | attrition scrubber washer | SET | 3 | |||||
6 | Vibrating feeder | SET | 1 |
